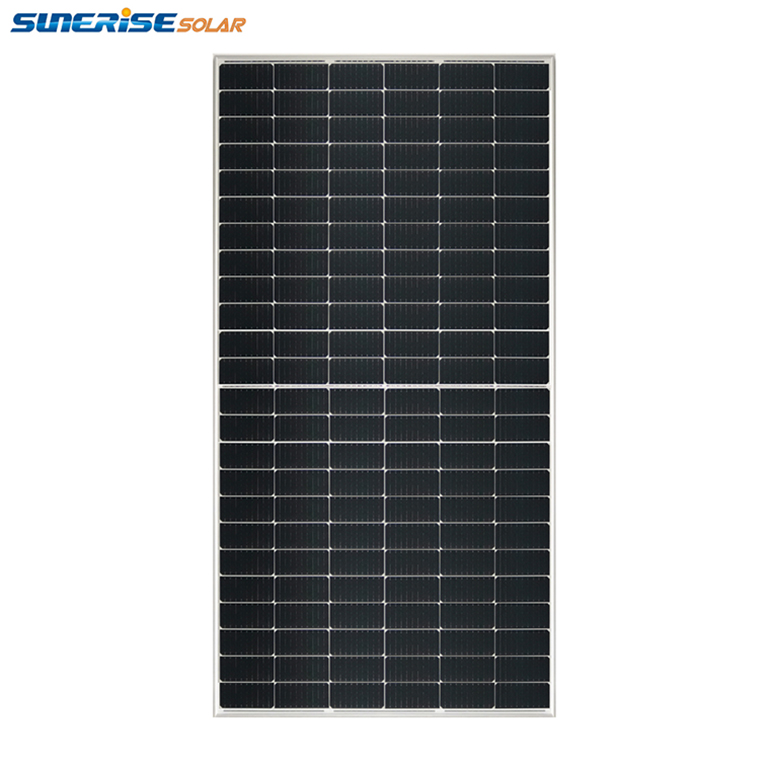

    9BB Polycrystalline PhotovoltaicMono Panel Solar 450w Waterproof IP68

    Ask Lasest Price
    Brand Name : SUNERISE
    Model Number : JC450-144M
    Certification : TUV,CQC,CE,IAF,CNAS,ISO etc
    Price : $0.22/watt-$0.24/watt
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 1MW,1Month
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    9BB Polycrystalline PhotovoltaicMono Panel Solar 450w Waterproof IP68

    Beautiful Price 9BB Mono Or Polycrystalline Solar Panels Photovoltaic Solar Panels 450w HC Solar Panel


    Monocrystalline Solar Panel

    Beautiful Price 9BB Mono Or Polycrystalline Solar Panels Photovoltaic Solar Panels 450w HC Solar Panel

    Features:

    The output power of a half-cell photovoltaic module with the same efficiency is significantly higher than that of a conventional whole-cell module. This is mainly due to the reduction in the series resistance of the half-chip module and the increase in the fill factor FF. At the same time, due to the lower internal resistance of the module, the temperature during power generation is lower than that of the conventional module, thereby further improving the power generation capacity of the module.
    The monocrystalline 445w450w455w half-cell module can reduce the power loss caused by shading, and can significantly increase the power generation of the module in the morning and evening and when the lower edge of the module accumulates dust and snow, and improves the economic benefits of the power station.
    Compared with other new technologies, half-chip technology is mature and easy to achieve rapid mass production. At the same time, the additional cost is not much.

    Maximum Power at STC [Pmax]450W
    Open Circuit Voltage [Voc]50V
    Short Circuit Current [Isc]11.47A
    Voltage at Maximum Power Point [Vm]41.4V
    Current at Maximum Power Point [Im]10.97A
    Power Tolerance0~+5W
    Module Efficiency20.7%
    Maximum Power at NOCT [Pmax]333.6
    Open Circuit Voltage [Voc]42.7
    Short Circuit Current [Isc]8.73
    Voltage at Maximum Power Point [Vm]38.3
    Current at Maximum Power Point [Im]8.73
    Values at Standard Test Conditions STCAir Mass AM1.5,irradiance 1000W/㎡ ,Cell Temperature 25℃
    NOCTIrradiance at 8000W/㎡,Ambient Temperature 20℃,Wind Speed 1m/s

    Model : JC450-144M
    Cell Type : MONO 166*83mm*144pcs
    Power : 450W+ 0~5W
    Voltage : 42.1V
    Current : 10.69A
    Efficiency : 20.7%
    Dimension : 2094*1038*35mm
    Weight : 24kg/pc
    Waterproof Grade : IP68
    Fireproof Grade : Class C
    Package Method : 30 pcs/ pallet
    Package size : 2110*1130*1180mm
    Package weight : 695Kg
    Quantity Of Full Load in 20’ Container : 310pcs
    Quantity Of Full Load in 40’ Container : 682/726
    Technique Warranty : 12 years
    Generation Warranty : 25 years
    OEM/ODM : Accept
    MOQ : one pallet

    Manufacturing Technique

    FAQ
    1.Q:Do you have your own factory?
    A:Yes, we are professional manufacturer mainly in solar panel for many years. Our factory is located in Hefei, Anhui, China.
    2.Q:What kind of certification you have?
    A:ISO9001,ISO14001,ISO18001, TUV,CQC,CE,CEC,UL and so on.
    Our products could pass different labor testing according to different countries' requirements.
    3.Q:Where we can use the system?
    A:You can use the system for home, for power station, for lighting system and so on, wnere the grid power is expensive.
    4.Q:How about your warranty?
    A: We provide 1.5 and 3 years warranty for different products and whole life technical support.
    5.Q:Competitive Price
    A:All of our products are produced by our own factory. So the price is very copetitive.
    6.Q:How to do the installation?
    A: This portable solar system installation is very simple, only need to connect solar panel with controller, and push ON/OFF button, then it will start to work.
    7.Q:24-hours online service
    A: Please feel free to contact us. Our sales team will provide you with 24 hours better pre-sale.
