Cleaning Energy Poly 335 Watt Solar Cell Panels IP68 Waterproof

    Buy cheap Cleaning Energy Poly 335 Watt Solar Cell Panels IP68 Waterproof from wholesalers

    Buy cheap Cleaning Energy Poly 335 Watt Solar Cell Panels IP68 Waterproof from wholesalers
    • Buy cheap Cleaning Energy Poly 335 Watt Solar Cell Panels IP68 Waterproof from wholesalers
    • Buy cheap Cleaning Energy Poly 335 Watt Solar Cell Panels IP68 Waterproof from wholesalers
    • Buy cheap Cleaning Energy Poly 335 Watt Solar Cell Panels IP68 Waterproof from wholesalers

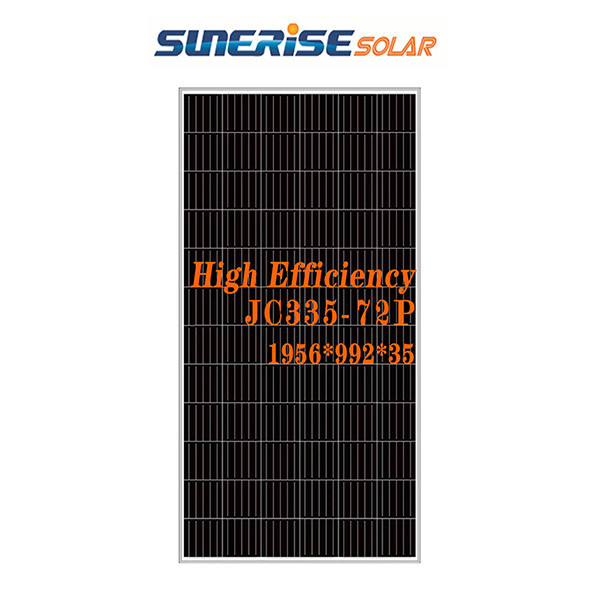

    Cleaning Energy Poly 335 Watt Solar Cell Panels IP68 Waterproof

    Ask Lasest Price
    Brand Name : SUNERISE
    Model Number : JC335-72P
    Certification : TUV,CQC,CE,IAF,CNAS,ISO etc
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 1MW,1Month
    Delivery Time : 5-7 work days
    • Product Details
    • Company Profile

    Cleaning Energy Poly 335 Watt Solar Cell Panels IP68 Waterproof

    Cleaning energy best PV modules home system power station poly 335 watt solar cell panels

    Polycrystalline Solar Panel

    Cleaning energy best PV modules home system power station poly 335 watt solar cell panels

    Features:

    The energy consumed in the manufacturing process of polycrystalline silicon solar cells is about 30% less than that of monocrystalline silicon solar cells. Therefore, polycrystalline silicon solar cells account for a large share of the total global solar cell production, and the manufacturing cost is less than that of monocrystalline silicon cells. Therefore, the use of polycrystalline silicon solar cells will It will be more energy-saving and environmentally friendly!


    Maximum Power at STC [Pmax]335W
    Open Circuit Voltage [Voc]45.8
    Short Circuit Current [Isc]9.54
    Voltage at Maximum Power Point [Vm]37.4
    Current at Maximum Power Point [Im]8.96
    Power Tolerance0~+5W
    Module Efficiency17.32%
    Maximum Power at NOCT [Pmax]243.37
    Open Circuit Voltage [Voc]42.8
    Short Circuit Current [Isc]7.49
    Voltage at Maximum Power Point [Vm]34.46
    Current at Maximum Power Point [Im]7.07
    Values at Standard Test Conditions STCAir Mass AM1.5,irradiance 1000W/㎡ ,Cell Temperature 25℃
    NOCTIrradiance at 8000W/㎡,Ambient Temperature 20℃,Wind Speed 1m/s


    Product details:

    When we choose photovoltaic modules, we recommend choosing more mature products of crystalline silicon photovoltaic modules based on the actual situation. There have been controversies about monocrystalline and polycrystalline. Our installers do not have much difference in the power generation capacity of home photovoltaic power generation systems. The utilization area of the crystal will be relatively high, and the area utilization rate of the single crystal will be better; the proportion of the polycrystalline market is relatively high, the application is relatively wide, and the price also has certain advantages, but we must understand that for the same power photovoltaic The system is consistent with respect to power generation.

    Model : JC335-72P
    Cell Type : Poly156*156mm*72pcs
    Power : 335W+ 0~5W
    Voltage : 37.4V
    Current : 8.96A
    Efficiency : 17.32%
    Dimension : 1956*992*35mm
    Weight : 21 kg/pc
    Waterproof Grade : IP68
    Fireproof Grade : Class C
    Package Method : 30 pcs/ pallet
    Package size : 1990*1130*1125mm
    Package weight : 645 Kg
    Quantity Of Full Load in 20’ Container : 300 pcs
    Quantity Of Full Load in 40’ Container : 720/768 pcs
    Technique Warranty : 12 years
    Generation Warranty : 25 years
    OEM/ODM : Accept
    MOQ : 30 pcs

    Manufacturing Technique

    Cleaning Energy Poly 335 Watt Solar Cell Panels IP68 WaterproofCleaning Energy Poly 335 Watt Solar Cell Panels IP68 WaterproofCleaning Energy Poly 335 Watt Solar Cell Panels IP68 Waterproof

    FAQ
    1.Q:Do you have your own factory?
    A:Yes, we are professional manufacturer mainly in solar panel for many years. Our factory is located in Hefei, Anhui, China.
    2.Q:What kind of certification you have?
    A:ISO9001,ISO14001,ISO18001, TUV,CQC,CE,CEC,UL and so on.
    Our products could pass different labor testing according to different countries' requirements.
    3.Q:Where we can use the system?
    A:You can use the system for home, for power station, for lighting system and so on, wnere the grid power is expensive.
    4.Q:How about your warranty?
    A: We provide 1.5 and 3 years warranty for different products and whole life technical support.
    5.Q:Competitive Price
    A:All of our products are produced by our own factory. So the price is very copetitive.
    6.Q:How to do the installation?
    A: This portable solar system installation is very simple, only need to connect solar panel with controller, and push ON/OFF button, then it will start to work.
    7.Q:24-hours online service
    A: Please feel free to contact us. Our sales team will provide you with 24 hours better pre-sale.
