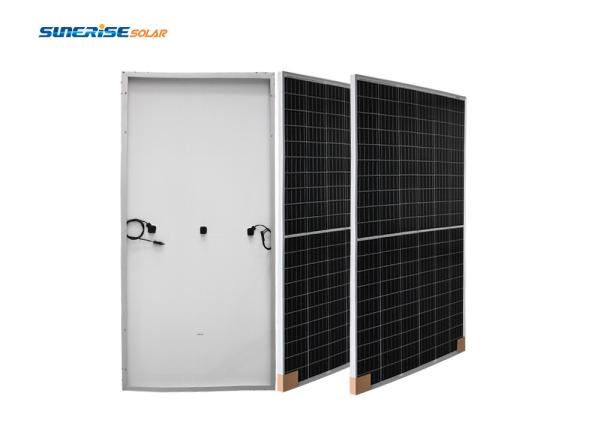

22.7KG 395W 144PCS Half Cell Module IP68 Waterproof Module Efficiency 19.53%

Half Cell Solar Panel

22.7KG 395W 144PCS Half Cell Module IP68 Waterproof Module Efficiency 19.53%

Product details:

1: High transmittance low iron tempered glass with enhanced stiffness and impact resistance.

2: Environmental protection solar energy , bill-free and user-friendly.

3: Up to IEC1500 VDS system voltage,saving on BoS costs.

4: Excellent performance in harsh weather.

5: Adopt high transparent self-cleaning tempered glass to increase the absorption of light, effectively reduce the power loss caused by dust. 6: Suitable for harsh enviroments,such as coasts,deserts and lakes.

7: Waterproof, anti-small hail, efficient and stable, cheap, 25 years life.

FEATURES INCLUDE:

1. 144 half-cells (158.75mm) connected in series

2. Positive power tolerance of 0~3% improves system performance

3. Industry-leading module efficiency: maximum efficiency of 20.1%

4. Tested up to 5400Pa for maximum load resistance

5. Verified resistance against PID effects

6. Progressive power warranty guarantees 80.7% of rated power at 25 years

7. Manufactured globally with world-class quality standards

8. Strict salt spray and ammonia corrosion test by TUVsud.

Maximum Power At STC	395
Open Circuit Voltage	49.5
Short Circuit Current	10.23
Voltage at Maximum Power point	41.4
Current at Maximum Power point	9.55
Power Tolerance	0~+5W
Module Efficiency	19.53
Maximum Power at NOCT	298
Open Circuit Voltage	48.2
Short Circuit Current	8.09
Voltage at Maximum Power point	39.3
Current at Maximum Power point	7.60
Module application level	ClassA
Values at Standard Test Conditions	Air Mass AM 1.5 , irradiance 1000W/㎡ , Cell Temperature 25℃
NOCT	Irradiance at 800W/㎡ , Ambient Temperature 20℃ , Wind Speed 1m/s

Solar Cell

* High efficiency is 22%

* High shunt-resistance: adapt the several environmental conditions.

* By pass diode minimizes the power drop by shade.

* Excellent low light effect
Low breakage rate

Glass

* High-transmittance and low reflection

* High solar transmittance

* High mechanical strength

Frame

* Aluminium extrusion profile with prompt delivery.

* Available in customized surface finish.

* Excellent material for smooth and subtle edges.

* Extrusion for construction and other industrial purposes.

Junction Box

* Unique split junction box design to minimize the loss caused by occlusion

* Combination of series circuit and parallel circuit, reduced internal power loss.

* IP67 Waterproofness, Full-Glue-Filled

FAQ

1.Q:Do you have your own factory?

A:Yes, we are professional manufacturer mainly in solar panel for many years. Our factory is located in Hefei, Anhui, China.

2.Q:What kind of certification you have?
A:ISO9001,ISO14001,ISO18001, TUV,CQC,CE,CEC,UL and so on.

Our products could pass different labor testing according to different countries' requirements.

3.Q:Where we can use the system?

A:You can use the system for home, for power station, for lighting system and so on, wnere the grid power is expensive.

4.Q:How about your warranty?

A: We provide 1.5 and 3 years warranty for different products and whole life technical support.

5.Q:Competitive Price

A:All of our products are produced by our own factory. So the price is very copetitive.

6.Q:How to do the installation?

A: This portable solar system installation is very simple, only need to connect solar panel with controller, and push ON/OFF button, then it will start to work.

7.Q:24-hours online service

A: Please feel free to contact us. Our sales team will provide you with 24 hours better pre-sale.

Company Profile:

     Sunerise Energy, a comprehensive company focus on civil photovoltaic applications. R&D and operation general office is located in Liandong U Valley Industrial Park, Hefei City, Anhui Province, with a building area of 10,000 square meters, the beautiful innovation capital. Sunerise was established in 2009, main business include the R&D, design, production and sales of photovoltaic modules, off-grid inverters, photovoltaic controllers, solar lights and home energy storage system; Sunerise has the third-level qualification for electricity construction, also provides One-station EPC services for consult of on grid power plant, investment and financing, feasibility report, design solutions, EPC general contracting, operation and maintenance power plant. Sunerise has in succession got the honors of high-tech enterprises, Anhui high-tech products in, hefei innovative enterprises, reputable and reliable company, “smart” manufacture, and digital workshops.

    Sunerise has a 600MW all automatic production line for photovoltaic modules and an annual production capacity for 100,000 photovoltaic controllers, inverters, and home energy storage systems. As a leading of photovoltaic manufacturer domestic, Sunerise approval management system certifications ISO9001, ISO14001, and ISO45001 etc, its products approval certifications domestic and international include TUV, IEC, CQC, UL, CE, ROHS, KS, PSE, etc; till now, Sunerise got 6 kinds of invention patents and 44 kinds of utility model patents.

    The advantage of Sunerise is providing personalized customized services for photovoltaic systems, Mainly sold to Asia, Europe, Africa and the Americas. Sunerise currently have been established branch office in Vietnam, Cambodia, Indonesia, Singapore, Bangladesh, Pakistan, and Poland to provide localization consulting and product service.

   Under the global warming and oil energy reduced everyday, photovoltaic electricity has now become the first choice to develop renewable energy for most of countries all over the world. Photovoltaic energy is also an important plan for China to achievement the "3060 double carbon goal"(carbon neutrality). Based on the mission of “providing renewable energy to every one”, Sunerise will unite all power from society and try its best to achievement vision of “the world leader in civil photovoltaic power system” to contribute itself for the green, low-carbon and sustainable development.
