Hot Sell 275Watt Poly Solar Panel 60 Cells 16.9% Efficiency With CE
Certificated
Polycrystalline Solar Panel
Hot Sell 275Watt Poly Solar Panel 60 Cells 16.9% Efficiency With CE
Certificated
Feature :
1. High cell efficiency with quality silicon materials for long
term output stability and reliability.
2. Polycrystalline solar panel,high conversion rate.
3: Thickened grade a tempered glass,the glass mask has good light
transmission,and the edge seal has high hardness,and is not easy to
damage.
4.Long service life .
5.High efficiency solar cells .
6.Special aluminum frame design.
7.High transmission ,low iron tempered glass.
8.Advanced cell encapsulation
Applications:
1.Solar power stations.
2.Rural electrification ,small home power systems.
3.Power supply for traffic ,security ,gas industry.
4.12V and 24V battery charging system .
5.Other industrial and commercial applications.
| Maximum Power at STC [Pmax] | 275 |
| Open Circuit Voltage [Voc] | 38.00 |
| Short Circuit Current [Isc] | 9.45 |
| Voltage at Maximum Power Point [Vm] | 31.00 |
| Current at Maximum Power Point [Im] | 8.88 |
| Power Tolerance | 0~+5W |
| Module Efficiency | 16.90 |
| Maximum Power at NOCT [Pmax] | 199.82 |
| Open Circuit Voltage [Voc] | 34.99 |
| Short Circuit Current [Isc] | 7.67 |
| Voltage at Maximum Power Point [Vm] | 28.10 |
| Current at Maximum Power Point [Im] | 7.12 |
| Values at Standard Test Conditions STC | Air Mass AM1.5,irradiance 1000W/㎡ ,Cell Temperature 25℃ |
| NOCT | Irradiance at 8000W/㎡,Ambient Temperature 20℃,Wind Speed 1m/s |

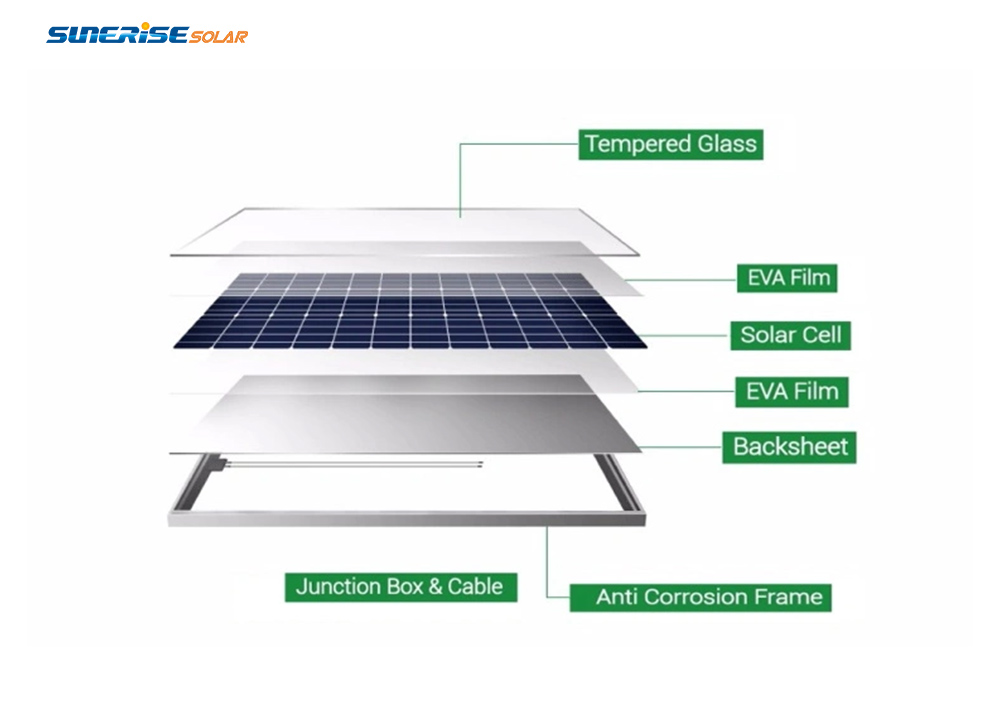

Product Details:
Glass
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years
Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
Frame
> Conventional frame
> Silver frames
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection
Junction box
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
FAQ
1.Q:Do you have your own factory?
A:Yes, we are professional manufacturer mainly in solar panel for
many years. Our factory is located in Hefei, Anhui, China.
2.Q:What kind of certification you have?
A:ISO9001,ISO14001,ISO18001, TUV,CQC,CE,CEC,UL and so on.
Our products could pass different labor testing according to
different countries' requirements.
3.Q:Where we can use the system?
A:You can use the system for home, for power station, for lighting
system and so on, wnere the grid power is expensive.
4.Q:How about your warranty?
A: We provide 1.5 and 3 years warranty for different products and
whole life technical support.
5.Q:Competitive Price
A:All of our products are produced by our own factory. So the price
is very copetitive.
6.Q:How to do the installation?
A: This portable solar system installation is very simple, only
need to connect solar panel with controller, and push ON/OFF
button, then it will start to work.
7.Q:24-hours online service
A: Please feel free to contact us. Our sales team will provide you
with 24 hours better pre-sale.
