    High Transmission 72cells 340W Polycrystalline Solar Panel

    Ask Lasest Price
    Brand Name : SUNERISE
    Model Number : JC340-72P
    Certification : TUV , CQC , CE , ISO
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1MW,1Month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

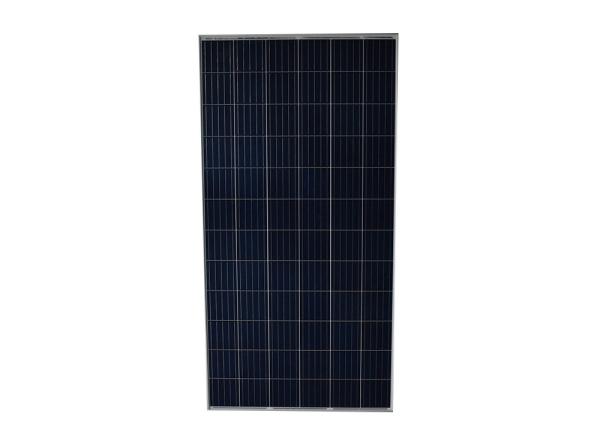

    High Transmission 72cells 340W Polycrystalline Solar Panel

    Factory Direct A Grade 72cells 340W Polycrystalline Poly Solar Panel For Solar System

    Polycrystalline Solar Panel


    Factory Direct A Grade 72cells 340w Polycrystalline Poly Solar Panel For Solar System


    Features:
    Long service life .
    High efficiency solar cells .
    Special aluminum frame design.
    High transmission ,low iron tempered glass.

    Applications:
    Solar power stations.
    Rural electrification ,small home power systems.
    Power supply for traffic ,security ,gas industry.
    12V and 24V battery charging system .
    Other industrial and commercial applications.

    Maximum Power at STC [Pmax]

    340
    Open Circuit Voltage [Voc]45.90
    Short Circuit Current [Isc]9.62
    Voltage at Maximum Power Point [Vm]37.60
    Current at Maximum Power Point [Im]9.05
    Power Tolerance0~+5W
    Module Efficiency17.58
    Maximum Power at NOCT [Pmax]247.40
    Open Circuit Voltage [Voc]42.90
    Short Circuit Current [Isc]7.60
    Voltage at Maximum Power Point [Vm]34.60
    Current at Maximum Power Point [Im]7.10
    Values at Standard Test Conditions STCAir Mass AM1.5,irradiance 1000W/㎡ ,Cell Temperature 25℃

    NOCT

    Irradiance at 8000W/㎡,Ambient Temperature 20℃,Wind Speed 1m/

    Product details:

    Glass
    > Antireflective glass
    > Translucency of normal luminance is increased by 2%
    > Module efficiency is increased by 2%
    > Service life is as long as 25 years

    Solar Cell
    > High Efficiency PV Cells
    > Appearance Consistency
    > Color sorting ensure consistent appearance on each module
    > Anti-PID

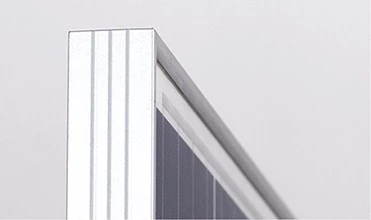

    Frame
    > Conventional frame
    > Silver frames
    > Boost bearing capability and prolong service life
    > Serrated-clip design tensile strength
    > Seal-lip designglue injection



    Junction box
    > Conventional standalone edition and engineering custom edition
    > Quality diode ensures module running safety
    > IP67 protection level
    > Heat dissipation
    > Long service life

    FAQ

    1.Q:Do you have your own factory?

    A:Yes, we are professional manufacturer mainly in solar panel for many years. Our factory is located in Hefei, Anhui, China.

    2.Q:What kind of certification you have?
    A:ISO9001,ISO14001,ISO18001, TUV,CQC,CE,CEC,UL and so on.

    Our products could pass different labor testing according to different countries' requirements.

    3.Q:Where we can use the system?

    A:You can use the system for home, for power station, for lighting system and so on, wnere the grid power is expensive.


    4.Q:How about your warranty?

    A: We provide 1.5 and 3 years warranty for different products and whole life technical support.


    5.Q:Competitive Price

    A:All of our products are produced by our own factory. So the price is very copetitive.


    6.Q:How to do the installation?

    A: This portable solar system installation is very simple, only need to connect solar panel with controller, and push ON/OFF button, then it will start to work.


    7.Q:24-hours online service

    A: Please feel free to contact us. Our sales team will provide you with 24 hours better pre-sale.
