    18KG IP68 265W Blue 37.7V Polycrystalline Solar Panel

    Ask Lasest Price
    Brand Name : SUNERISE
    Model Number : JC265-60P
    Certification : TUV , CQC , CE , ISO
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1MW,1Month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

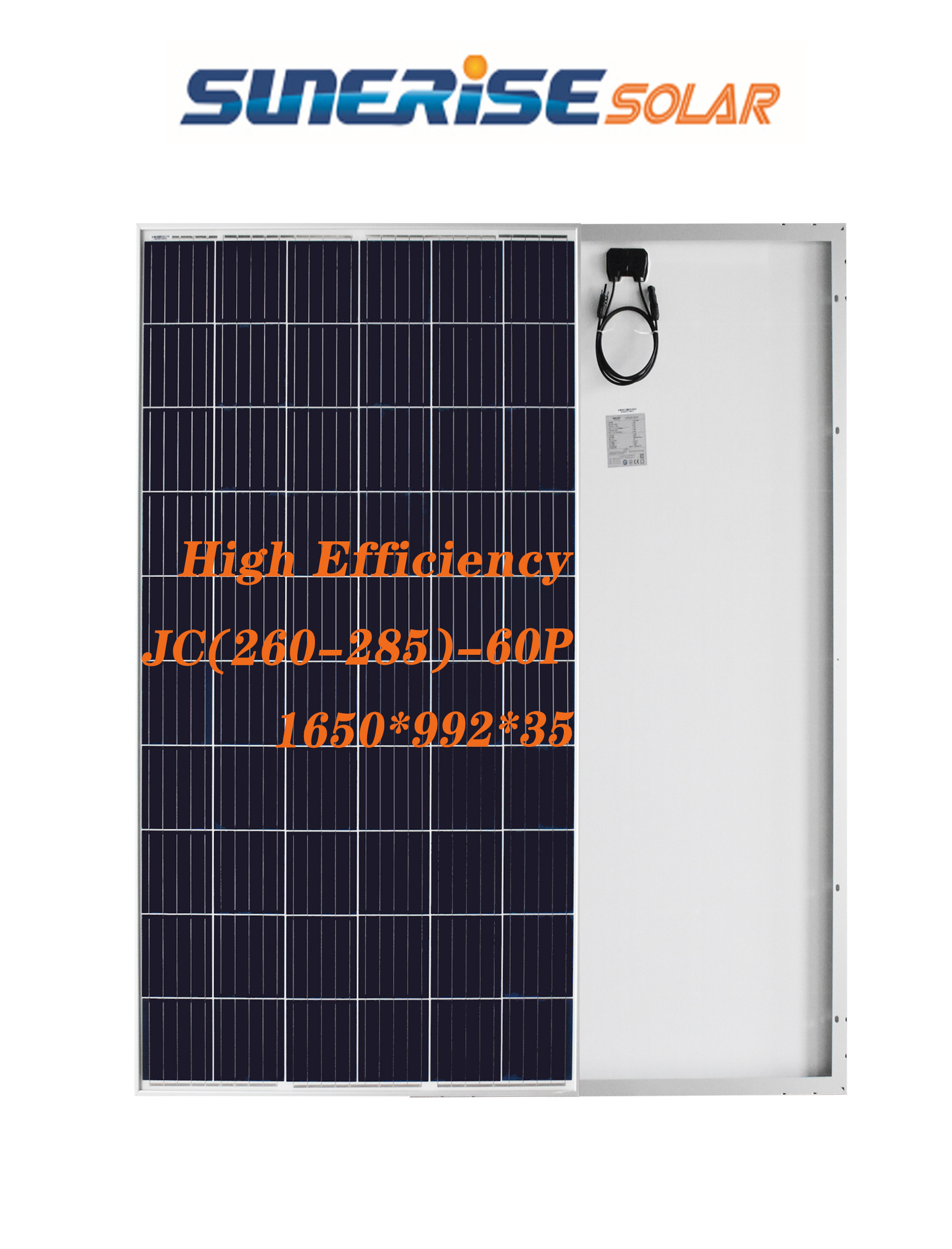

    18KG IP68 265W Blue 37.7V Polycrystalline Solar Panel

    Polycrystalline Solar Panel


    18KG IP68 265W Blue 37.7V Polycrystalline Solar Panel


    Polycrystalline modules : Jing Chen polycrystalline modules have high output power and high efficiency , using the most advanced module production technology . With lower operating temperature and excellent low light response.

    Feature :

    1. Safe to use with long service life . Environmental protection solar energy .
    2. Strictly quality control ensure the stability and reliability .

    3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance.

    4. With advanced encapsulatiing material , laminated in totally automatically machine by experienced technician.

    5. Outstanding electrical performance under high temperature and low irradiance conditons.

    Notes for Products :

    1. USB can't enter water.

    2. Do not extrude with objects.

    3. Can't fold.

    Maximum Power at STC [Pmax]

    265
    Open Circuit Voltage [Voc]37.70
    Short Circuit Current [Isc]9.23
    Voltage at Maximum Power Point [Vm]30.61
    Current at Maximum Power Point [Im]8.66
    Power Tolerance0~+5W
    Module Efficiency16.29
    Maximum Power at NOCT [Pmax]192.56
    Open Circuit Voltage [Voc]34.71
    Short Circuit Current [Isc]7.49
    Voltage at Maximum Power Point [Vm]27.73
    Current at Maximum Power Point [Im]6.94
    Values at Standard Test Conditions STCAir Mass AM1.5,irradiance 1000W/㎡ ,Cell Temperature 25℃

    NOCT

    Irradiance at 8000W/㎡,Ambient Temperature 20℃,Wind Speed 1m/s

    18KG IP68 265W Blue 37.7V Polycrystalline Solar Panel

    Product Details:
    1. High efficiency photovoltaic cell
    2. Color sorting ensures that each module looks the same


    1. The main function is to protect and support the glass and its own weight
    2. Anti-corrosion, anti-oxidation
    3. The frame is hard, strong and has a long service life


    1. Ultra white, high permeability, low iron
    2. It can effectively resist severe weather such as hail
    3. The service life is more than 20 years


    1. Anodizing to prevent radiation
    2. Increase sealing performance and increase service life

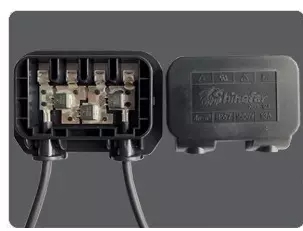

    1. The main function is to export the collected current through the lead wire

    2. The function of the diode inside is to decompose heat and prevent combustion
