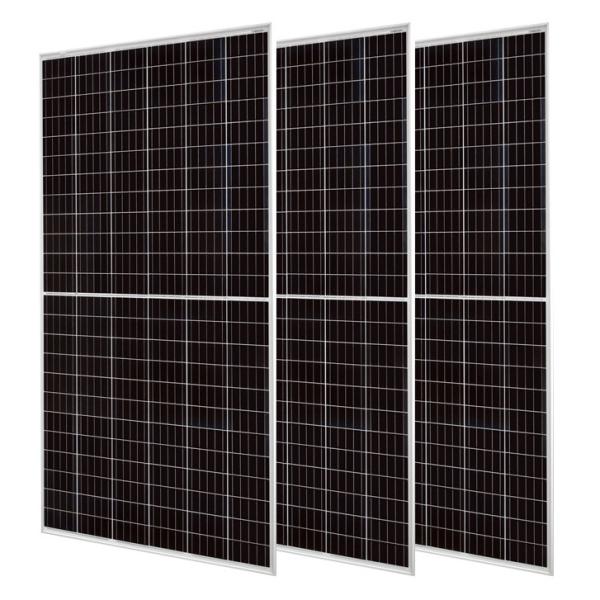

    1979*1002*35mm 72PCS 380W Monocrystalline Solar Panel

    Ask Lasest Price
    Brand Name : SUNERISE
    Model Number : JC380-72M
    Certification : TUV , CQC , CE , ISO
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1MW,1Month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    1979*1002*35mm 72PCS 380W Monocrystalline Solar Panel

    Monocrystalline Solar Panel


    1979*1002*35mm 72PCS 380W Monocrystalline Solar Panel


    Feature

    1. Waterproof --- Advanced water and dust proof level, complete protection against environmental particles and low pressure water jets.

    2. Safe to use with long service life. Environmental protection solar energy.

    3. Up to IEC1500 VDS system voltage,saving on BoS costs.

    4. It can hold 5400 Pa snow load,2400 Pa wind liad.

    5. Suitable for harch environments,such as coasts,deserts and leaks.

    Maximum Power at STC [Pmax]380
    Open Circuit Voltage [Voc]48.9
    Short Circuit Current [Isc]9.75
    Voltage at Maximum Power Point [Vm]30.5
    Current at Maximum Power Point [Im]9.39
    Power Tolerance0~+5W
    Module Efficiency19.16
    Maximum Power at NOCT [Pmax]286
    Open Circuit Voltage [Voc]47.5
    Short Circuit Current [Isc]7.88
    Voltage at Maximum Power Point [Vm]38.6
    Current at Maximum Power Point [Im]7.42
    Values at Standard Test Conditions STCAir Mass AM1.5,irradiance 1000W/㎡ ,Cell Temperature 25℃
    NOCTIrradiance at 8000W/㎡,Ambient Temperature 20℃,Wind Speed 1m/s

    1979*1002*35mm 72PCS 380W Monocrystalline Solar Panel

    Product details

    1. Safe to use with long service life . Environmental protection solar energy.

    2. Strictly quality control ensure the stability and reliability .

    3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance.

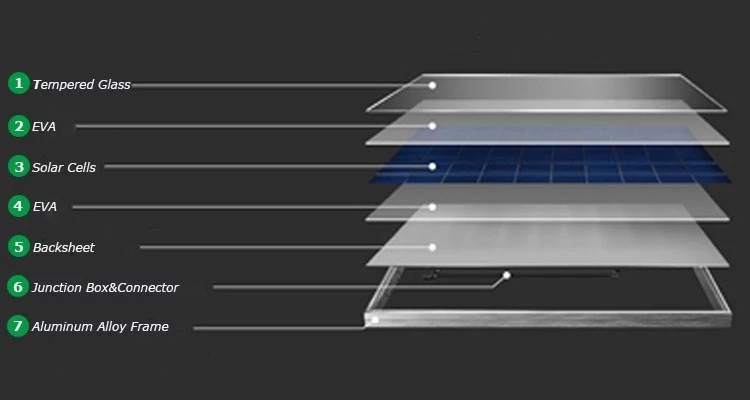

    Manufacturing Technique

    Tempered Glass

    * 12% Ultra Clear Tempered Glass.
    * 30% Lower Reflection

    * 3.2mm thickness

    * >91% Higher Transmittance
    * High mechanical strength

    EVA

    * >91% Higher Transmittance EVA,

    * Higher GEL Content To Provide Good Encapsulation And

    Protect Cells From Vibration With Longer Durability

    Solar Cells

    * A Grade Solar Cells

    * High Efficiency PV Cells, Anti-Pid

    * Appearance Consistency

    Frame&Backsheet

    * Aluminum Alloy Frame

    * 120N Tensile Strength Frame
    * 110% Seal-lip Design Glue Injection


    Solar Juction Box

    * IP68 Waterproof, Closed

    * 4mm2, 900mm Wire Size Range

    * -40 ℃ to +85 ℃ Temperature Range

    * Innovative full-glue-filled junction box

    Outstanding sealability

    PV Connector

    * 4mm2 Qualified cable with PV Connector
    * 500N Tensile Strength

    Our service

    1. All your inquiry,we reply whitin 12 Hours.

    2: Fast produce and delivery to our world customers.

    3: Offer customer the lowest price with good quality.
