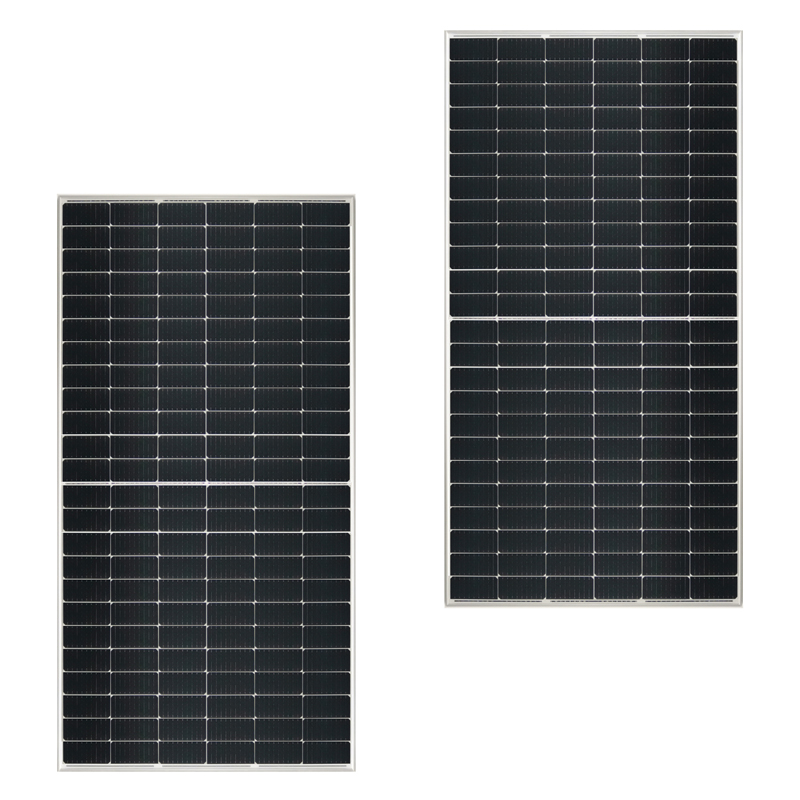

    Civil Residential Monocrystalline Solar Panel For Home 18v 455w

    Ask Lasest Price
    Brand Name : SUNERISE
    Model Number : JC455-144M
    Certification : TUV,CQC,CE,IAF,CNAS,ISO etc
    Price : negotiatable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 1MW,1Month
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Civil Residential Monocrystalline Solar Panel For Home 18v 455w

    Civil Residential Solar Panels For Home Mono Poly 18v Monocrystalline Solar Panels 455w SOLAR PANEL


    Monocrystalline Solar Panel

    Civil Residential Solar Panels For Home Mono Poly 18v Monocrystalline Solar Panels 455w SOLAR PANEL

    Features:

    High power
    ●Applying MBB half-chip technology, the power is up to 455W, and the efficiency is 20.6%
    ●Higher component power can effectively reduce system BOS cost
    High reliability
    ●Suitable for high temperature and high humidity areas
    ●Improve anti-PID performance through battery process optimization and material control
    ●Anti-salt spray ammonia
    ●Pass the mechanical load test of 5400 Pa on the front and 2400 Pa on the back
    High power generation
    ●Excellent IAM and low light response performance verified by a third party
    ●Lower temperature coefficient and lower working temperature bring more power generation
    ●Half-chip technology brings stronger anti-shadow occlusion ability
    Easy to install
    ●Conventional frame design makes double glass components suitable for various bracket installation methods
    ●Easy to hold, transport and install

    Compared with ordinary products, this product adopts large-size technology, slicing technology and MBB technology, has higher power, larger effective power generation area, can reduce the risk of hot spots, and is suitable for high-current components.

    Maximum Power at STC [Pmax]455W
    Open Circuit Voltage [Voc]50.2V
    Short Circuit Current [Isc]11.52A
    Voltage at Maximum Power Point [Vm]41.6V
    Current at Maximum Power Point [Im]10.94A
    Power Tolerance0~+5W
    Module Efficiency20.9%
    Maximum Power at NOCT [Pmax]337.4
    Open Circuit Voltage [Voc]42.9
    Short Circuit Current [Isc]8.79
    Voltage at Maximum Power Point [Vm]38.5
    Current at Maximum Power Point [Im]8.79
    Values at Standard Test Conditions STCAir Mass AM1.5,irradiance 1000W/㎡ ,Cell Temperature 25℃
    NOCTIrradiance at 8000W/㎡,Ambient Temperature 20℃,Wind Speed 1m/s

    FAQ
    1.Q:Do you have your own factory?
    A:Yes, we are professional manufacturer mainly in solar panel for many years. Our factory is located in Hefei, Anhui, China.
    2.Q:What kind of certification you have?
    A:ISO9001,ISO14001,ISO18001, TUV,CQC,CE,CEC,UL and so on.
    Our products could pass different labor testing according to different countries' requirements.
    3.Q:Where we can use the system?
    A:You can use the system for home, for power station, for lighting system and so on, wnere the grid power is expensive.
    4.Q:How about your warranty?
    A: We provide 1.5 and 3 years warranty for different products and whole life technical support.
    5.Q:Competitive Price
    A:All of our products are produced by our own factory. So the price is very copetitive.
    6.Q:How to do the installation?
    A: This portable solar system installation is very simple, only need to connect solar panel with controller, and push ON/OFF button, then it will start to work.
    7.Q:24-hours online service
    A: Please feel free to contact us. Our sales team will provide you with 24 hours better pre-sale.
