Low Temperature Half Cell MONO Monocrystalline Solar Panels 144pcs 455w

Ask Lasest Price
Brand Name :	SUNERISE
Model Number :	JC455-144M
Certification :	TUV,CQC,CE,IAF,CNAS,ISO etc
Price :	negotiatable
Payment Terms :	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :	1.5MW,1Month
Delivery Time :	15 days

Add to Cart

Product Details
Company Profile

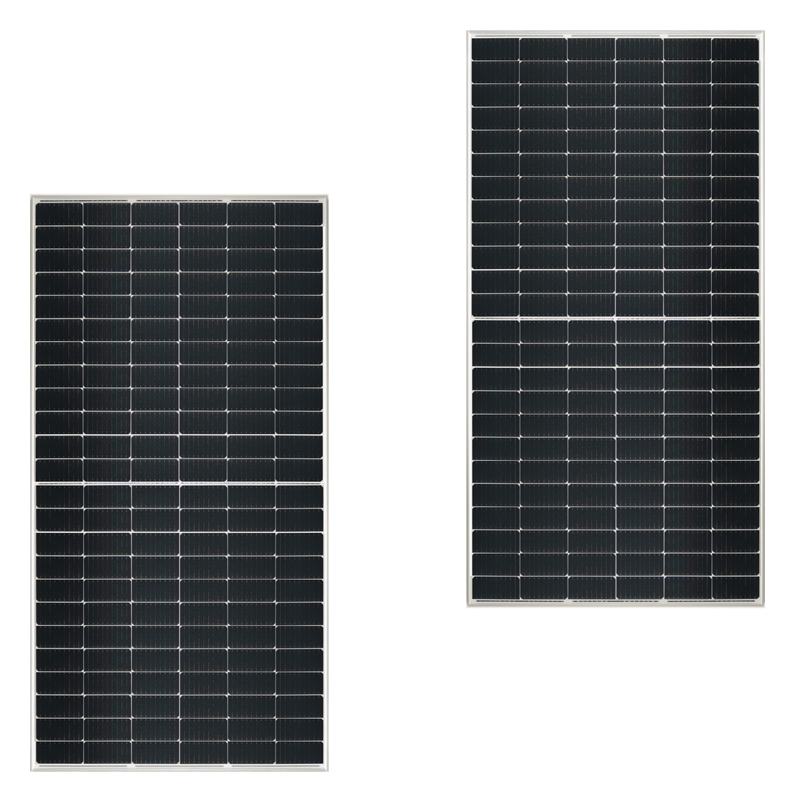

Low Temperature Half Cell MONO Monocrystalline Solar Panels 144pcs 455w

Low Temperature Better Efficiency Half Cell MONO Monocrystalline Solar Panels 455w SOLAR PANEL

Monocrystalline Solar Panel

Low Temperature Better Efficiency Half Cell MONO Monocrystalline Solar Panels 455w SOLAR PANEL

Features:

Monocrystalline silicon solar cell is currently the fastest developed solar cell, its composition and production process
The art has been finalized, and the products have been widely used in space and ground facilities. This solar cell uses high-purity monocrystalline silicon
The rod is the raw material, and the purity is required to be 99.999%. In order to reduce production costs, solar cells used on the ground are now
Using solar-grade monocrystalline silicon rods, material performance indicators have been relaxed. Some can also use semiconductor device processing
The head and tail materials and waste monocrystalline silicon materials are redrawn into monocrystalline silicon rods for solar cells. Monocrystalline silicon
The rod is cut into slices, generally about 0.3 mm thick. After the silicon wafer is formed, polished, cleaned, etc., it is made to be processed
Raw silicon wafers. To process solar cells, first doping and diffusion on the silicon wafers. Generally, the dopants are trace amounts.
Of boron, phosphorus, antimony and so on. Diffusion is carried out in a high-temperature diffusion furnace made of quartz tubes. This is formed on the silicon wafer
PN junction. Then use the screen printing method to print the prepared silver paste on the silicon wafer and make grid lines on it. After sintering, at the same time
The back electrode is made, and an anti-reflection source is coated on the surface with the grid lines to prevent a large number of photons from being reflected by the smooth surface of the silicon wafer.
Shoot off, and at this point, the monolithic wafers of the monocrystalline silicon solar cell are made. After the single chip has been spot-checked and inspected, you can press
The required specifications are assembled into solar cell modules (solar panels), which are constructed in series and parallel
One-definite output voltage and current, and finally encapsulated with frame and packaging materials.

Maximum Power at STC [Pmax]	455W
Open Circuit Voltage [Voc]	50.2V
Short Circuit Current [Isc]	11.52A
Voltage at Maximum Power Point [Vm]	41.6V
Current at Maximum Power Point [Im]	10.94A
Power Tolerance	0~+5W
Module Efficiency	20.9%
Maximum Power at NOCT [Pmax]	337.4
Open Circuit Voltage [Voc]	42.9
Short Circuit Current [Isc]	8.79
Voltage at Maximum Power Point [Vm]	38.5
Current at Maximum Power Point [Im]	8.79
Values at Standard Test Conditions STC	Air Mass AM1.5,irradiance 1000W/㎡ ,Cell Temperature 25℃
NOCT	Irradiance at 8000W/㎡,Ambient Temperature 20℃,Wind Speed 1m/s

FAQ
1.Q:Do you have your own factory?
A:Yes, we are professional manufacturer mainly in solar panel for
many years. Our factory is located in Hefei, Anhui, China.
2.Q:What kind of certification you have?
A:ISO9001,ISO14001,ISO18001, TUV,CQC,CE,CEC,UL and so on.
Our products could pass different labor testing according to
different countries' requirements.
3.Q:Where we can use the system?
A:You can use the system for home, for power station, for lighting
system and so on, wnere the grid power is expensive.
4.Q:How about your warranty?
A: We provide 1.5 and 3 years warranty for different products and
whole life technical support.
5.Q:Competitive Price
A:All of our products are produced by our own factory. So the price
is very copetitive.
6.Q:How to do the installation?
A: This portable solar system installation is very simple, only
need to connect solar panel with controller, and push ON/OFF
button, then it will start to work.
7.Q:24-hours online service
A: Please feel free to contact us. Our sales team will provide you
with 24 hours better pre-sale.
