2 In 1 Function IP65 Off Grid Solar Inverter With MPPT Charger Controller

    Buy cheap 2 In 1 Function IP65 Off Grid Solar Inverter With MPPT Charger Controller from wholesalers

    Buy cheap 2 In 1 Function IP65 Off Grid Solar Inverter With MPPT Charger Controller from wholesalers
    • Buy cheap 2 In 1 Function IP65 Off Grid Solar Inverter With MPPT Charger Controller from wholesalers
    • Buy cheap 2 In 1 Function IP65 Off Grid Solar Inverter With MPPT Charger Controller from wholesalers
    • Buy cheap 2 In 1 Function IP65 Off Grid Solar Inverter With MPPT Charger Controller from wholesalers

    2 In 1 Function IP65 Off Grid Solar Inverter With MPPT Charger Controller

    Ask Lasest Price
    Brand Name : SUNERISE
    Model Number : 24X/24.5X/25X
    Certification : TUV , CQC , ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000000 PCS/month
    Delivery Time : Within 5-8 work days
    • Product Details
    • Company Profile

    2 In 1 Function IP65 Off Grid Solar Inverter With MPPT Charger Controller

    Sunerise 2 In 1 Function Off Grid Solar Inverter With MPPT Charger Controller


    Main Features:

    1. Pure Sine Wave Invereter:compatible for most home appliances; stable outputs; strong capability

    2. MPPT Controller:higher charging efficiency; protect the battery, extend its life

    3. LCD Display:vivid display for system parameters and status

    4. Wall-mounted Design:compact appearance with all in one design;flexible installation type

    5. Multiple Type Options:flexible choice of batteries and solar panels based on actual daily load power needs


    Applications:

    1. Field operation:lighting, drilling, disaster relief, commercial promotions.

    2. Hospital emergency rescue:surgical lighting, equipment use, etc.

    3. Home Appliance:Electronic energy-saving fluorescent, incandescent, small television sets, refrigerator, etc.

    4. Energe: solar system, wind system


    Details:

    Pure sine wave powersolar power-solution with lithium batteries for solar system 12v
    Conversion efficiency 85%
    Easy to install & easy to operate & easy to solve
    explaination of problem clearly

    LED display1PC
    DC 12V output3PCS
    AC socket1PC
    USB port1PC

    There is solar system complete for your reference:

    NoItemspecificationWarrantyPhotoQuantity

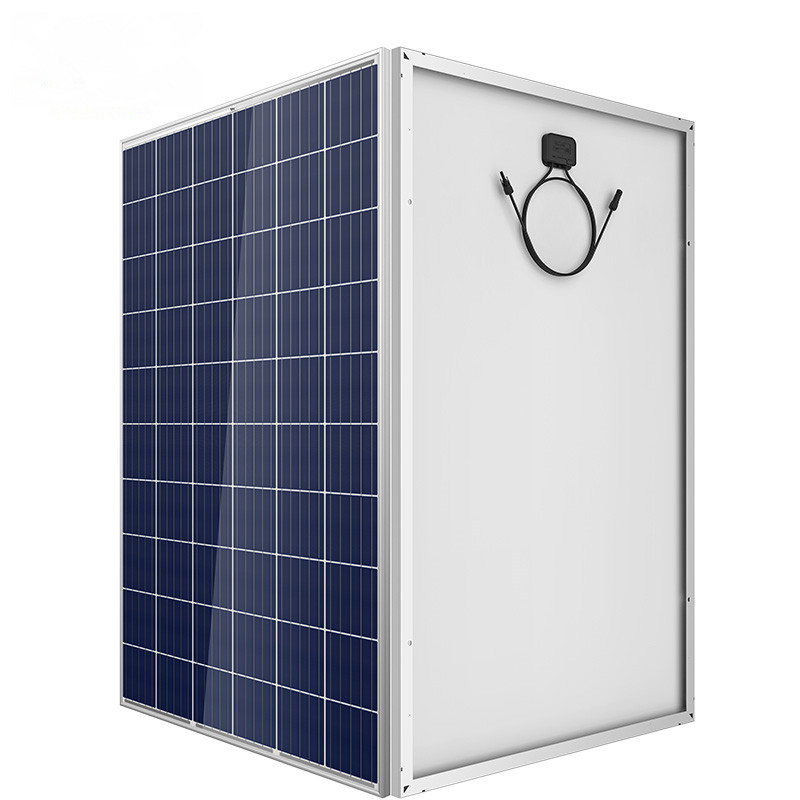

    1Mono/poly panel
    1. 300W poly solar panel
    2. A class
    3. Max power voltage:32.5V
    4. Max power current:7.38A
    5. Open circuit voltage39.0V
    6. MC4 connectors
    7. Dimensions:1790*992*45mm
    8. Weight:22KG
    25yearssolar power-solution with lithium batteries for solar system 12v2pcs
    2inverter with charger
    1. 1000w solar inverter withmppt controller
    2. PV max power: 600W.
    3. Working voltage:36V
    4. Max load power:3KW
    5. DC 12V output: 3 pcs
    6. AC socket: 1 pc
    7. USB port: 1 pc
    8. Charging efficiency:>99%
    9. Frequency: 50Hz/60Hz
    5years1pc
    3Gel-battery
    1. 12V 200Ah Gel-battey
    2. Max current:50A
    3. The temperature range:
    4. -25 to 50
    5. Size:485*170*240mm
    6. Weight:40kg
    5years2 In 1 Function IP65 Off Grid Solar Inverter With MPPT Charger Controller1pc
    Parameters

    ModelGNMB-12V-1000W-S40A
    Rated voltage12V
    PV power600W(MAX)
    Solar panel open voltage<50V
    Suggest PV voltage18V
    charge starting panel voltage>15V
    load power(MAX)2000W
    Over load power125%
    starting impact power1000VA
    charging modelMPPT
    charging efficiency>99%
    battery discharging protect voltage10.8V
    low voltage protection recovery voltage12.6V
    battery over voltage protection16.0V
    overvoltage protection recovery15.0V
    charging protection voltage14.4V
    Back to charging voltage13.2V
    AC output220V/230V/240V±3%(selecting match)
    AC output frequency50Hz/60HZ
    AC input rangeAC120V-AC280V
    Switch to POWER GRID<11.5V
    Switch to inverter>14.0V
    Output wave formSine wave
    Product efficiency>85%
    Working temperatureIndustrial grade -25℃to +55℃
    Working altitude<3500M
    Weight5.5kg
    Size(L*W*H)376*213*85MM

    solar power-solution with lithium batteries for solar system 12v
