Factory Directly Export Quality Silicon Material 340W Polycrystalline Solar Panel For Sale

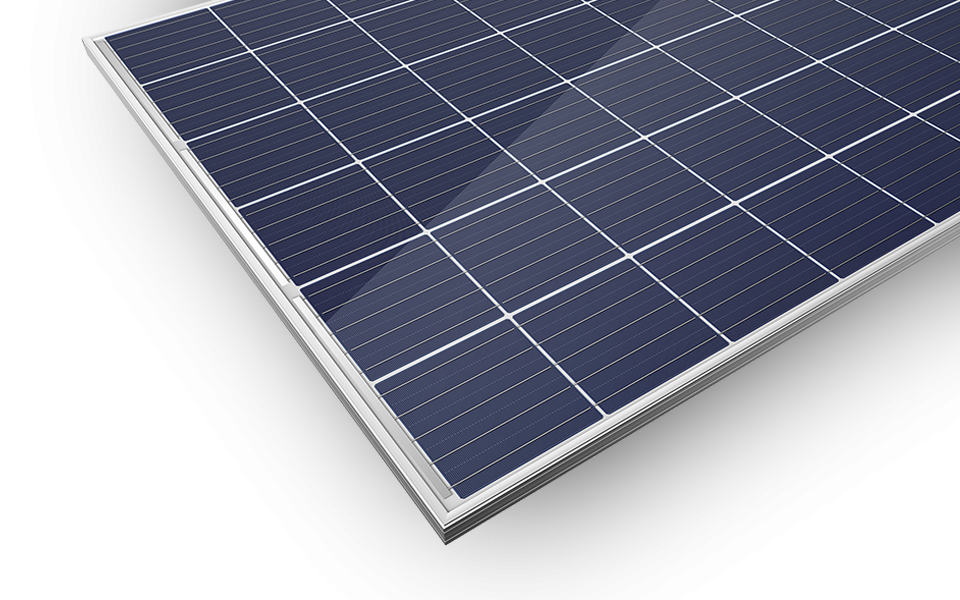

Polycrystalline Solar Panel

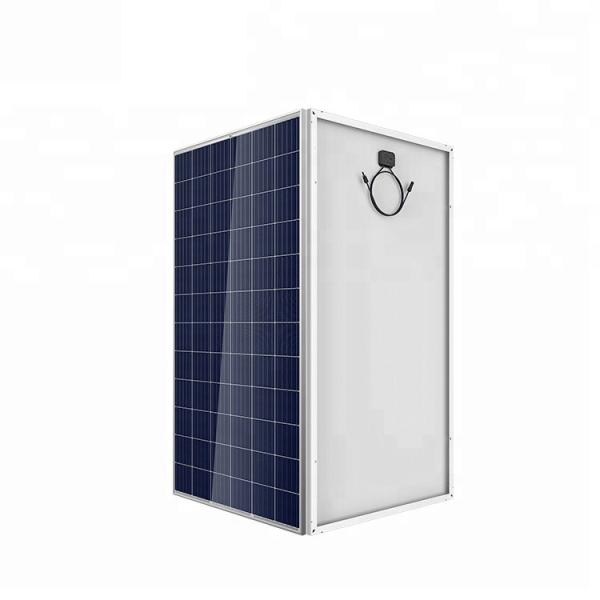

Blue 1956*992*35mm 72PCS 46.9V 335W Poly Solar Panel

Description:

Polycrystalline is square and blue after lamination. The conversion efficiency per unit area is lower than that of single crystal half slice. It is composed of eight auxiliary materials, including battery sheet, glass, back plate, EVA film, frame, junction box, welding belt and silicagel.

Feature:

1. High efficiency.Light weight,easy carrying,easy shipment,easy installation.

2. The products are suitable for various scenarios.For example yachts, households,RVs, street lights and solar power stations.

3. Waterproof, anti-small hail, efficient and stable, cheap, 25 years life.

Notes for Products:
1. Do not extrude with objects.
2. Can't fold.
3. USB can't enter water.

Caution:
1. Don't connect the input & output of the same panel itself or it will cause SHORT CIRCUIT!
2. It away from strong corrosive objects!
3. Don't have hard objects scratch the surface!

Model	JC335-72P	JC340-72P	JC345-72P	JC350-72P	JC355-72P
Rated Maximum Power at STC	335W	340W	345W	350W	355W
Open Circuit Voltage(Voc/V)	46.3	46.5	46.7	46.9	47.0
Maximum Power Voltage(Vmp/V)	37.9	38.2	38.4	38.5	38.7
Short Circuit Current(Isc/A)	9.36	9.45	9.5	9.6	9.69
Maximum Power Current(Imp/A)	8.84	8.90	9.00	9.09	9.17
Module Efficiency	17.3%	17.5%	17.8%	18.0%	18.3%
Standard Test Condition(STC)	Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5

Detailed Images

Solar Cells

High efficiency 5BB PV cell
Uniform color
Anti-PID
Germany standard Cell
Full test

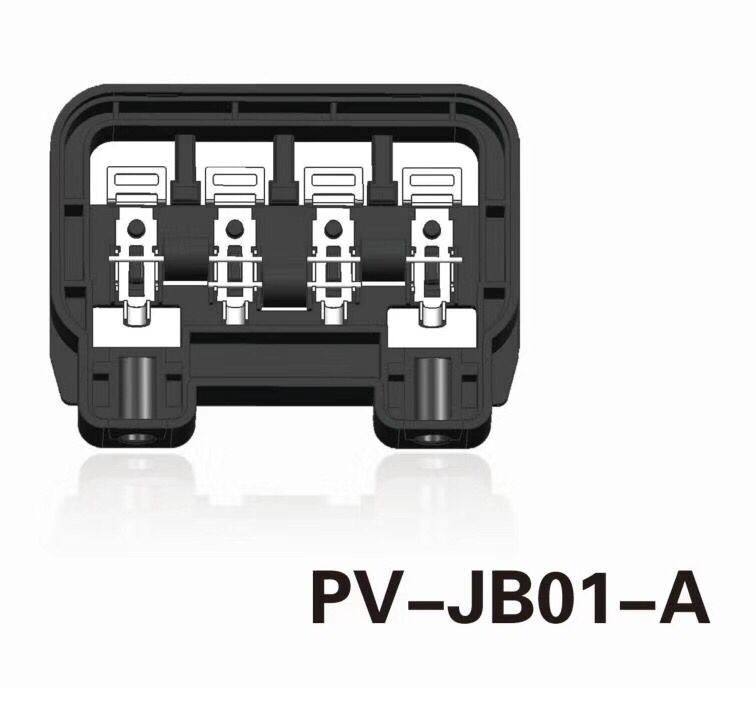

Junction box

Conventional standalone edition and engineering custom edition
Quality diode ensures module running safety
IP67 protection level
Heat dissipation
Long service life

Glass

Antireflective glass
Translucency of normal luminance is increased 2%
Module efficiency is increased 2%
Self-clean function
Service life 25 years

Frame

Stock-size
Silvery and black
Thickness 30/35/40/50mm
Stress test
